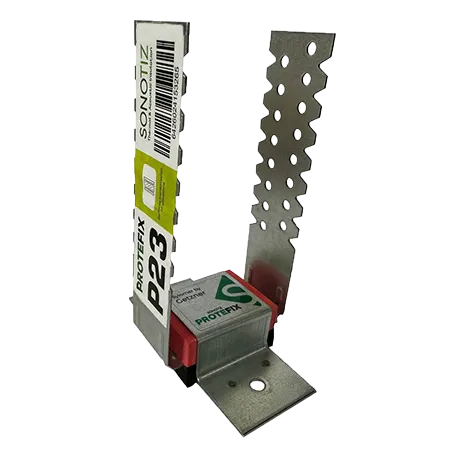

PROTEFIX P23 — Vibration-Isolating Mount for Walls and Ceilings
Anti-Vibration Suspension for Decoupled Frame Systems
PROTEFIX P23 is a precision-engineered suspension element designed to isolate drywall frame structures from structural ceilings and walls. By integrating a polyurethane elastomer core within a galvanized steel body, it prevents rigid contact and suppresses vibration transfer between structural and non-structural components. This allows for substantial improvement in acoustic comfort in both residential and commercial spaces. It is used in ceiling and wall assemblies to reduce structure-borne sound, especially in rooms that demand enhanced soundproofing — such as offices, studios, clinics, hotels, and multi-family housing.
Key Benefits and Functions
- Reduces vibration and impact transmission by up to 20 dB
- Long-lasting polyurethane elastomer — resistant to temperature extremes and aging
- Dual thickness elastomer core available (12.5 mm or 25 mm) to suit different performance needs
- Suitable for horizontal and vertical installations
- Ideal for mid- to high-frequency acoustic insulation (125–1000 Hz)
- No rigid connection between frame and structure
- Durable galvanized steel body
Typical Applications
- Suspended drywall ceilings in residential or commercial buildings
- Partition wall systems requiring acoustic isolation
- Acoustic control in recording studios or conference rooms
- Technical facilities or mechanical rooms
- Anywhere where vibration decoupling is essential
Technical Specifications
Parameter
Body material
Vibration Isolator Core
Dimensions (body)
Overall Height
Load Capacity
Elastomer Thickness
Operating Temperature
Acoustic Performance
Flammability
Service life
Value
Galvanized steel
Polyurethane elastomer
98 × 40 mm
154 mm
25–30 kg per suspension
12.5 mm / 25 mm (version-specific)
–30°C to +70°C
Reduces vibration by up to 20 dB
Self-extinguishing
Over 30 years

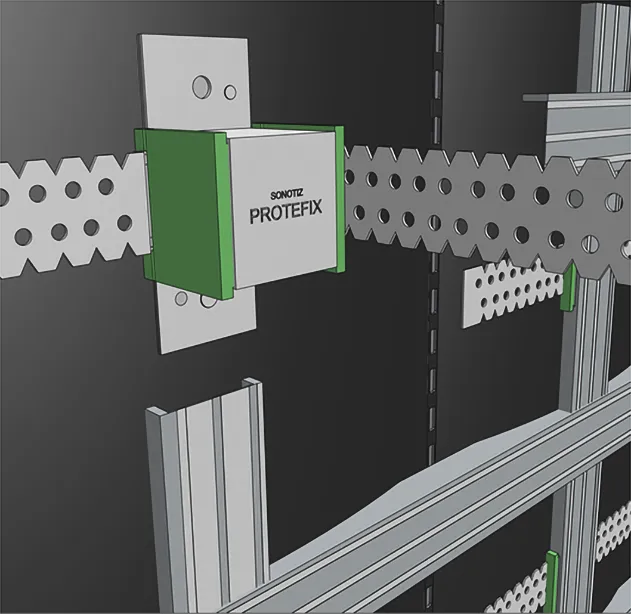

Installation Guide
Installing PROTEFIX P23 is straightforward and does not require specialized tools:
1.
Fix the hanger to the ceiling or wall using appropriate screws or dowels.
2.
Mount the metal frame (e.g., CD or UD profiles) into the suspension bracket, ensuring secure contact with the elastomeric insert.
3.
Avoid rigid fixing to prevent sound bridges.
4.
Maintain vertical alignment and observe spacing standards per acoustic design requirements.
For optimal acoustic insulation, PROTEFIX P23 should be used in combination with acoustic mats (e.g., SONO-ECO or SONOTIZ BLOCK) and resilient profiles.
Storage and Maintenance
- Store in a dry, cool environment away from direct sunlight.
- Avoid prolonged exposure to humidity or corrosive agents.
- Clean only with a dry cloth — do not use chemicals or abrasive materials.
- Shelf life: 36+ months under correct conditions.
Need Help With Suspension Design?
If you’re unsure how many mounts to use or where to place them for best acoustic performance — our technical team is here to help. We’ll assist in choosing the right configuration for your ceiling or wall layout.
