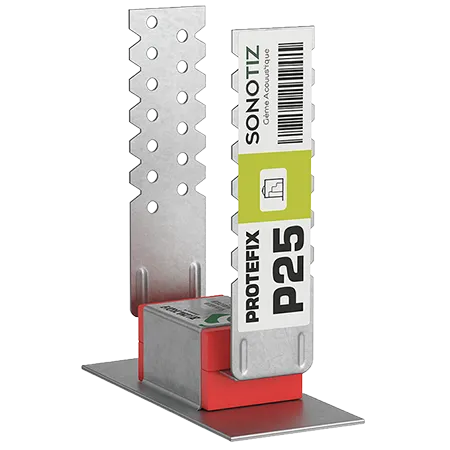

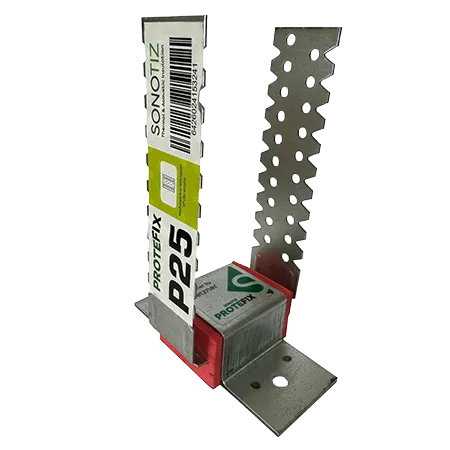

PROTEFIX P25 — Heavy-Duty Anti-Vibration Suspension Mount for Walls and Ceilings
Advanced Isolation Mount for Low-Frequency Acoustic Control
The PROTEFIX P25 is a high-performance vibration-isolating suspension system designed for wall and ceiling applications in professional soundproofing installations. With enhanced decoupling efficiency, it significantly improves noise reduction in low-frequency ranges, making it ideal for demanding acoustic environments. The mount consists of a durable steel body embedded with a 25 mm thick polyurethane elastomer core, which delivers superior vibration damping and long-term mechanical resilience. This added elastomer thickness ensures deeper isolation, especially in rooms where traditional suspension systems fall short.
Purpose and Benefits
- Provides structural decoupling between drywall frames and building elements
- Offers deep vibration absorption, reducing transmission of mechanical hums, footsteps, and bass frequencies
- Designed for use in both ceiling and wall frame assemblies
- Supports acoustic performance in commercial, technical, and studio environments
- Maintains performance across a wide temperature range and over decades of use
Technical Specifications
Parameter
Body Material
Elastomer
Dimensions
Height
Load Capacity
Acoustic Efficiency
Operating Temp.
Service Life
Value
Galvanized steel
Polyurethane, 25 mm thickness
98 mm × 40 mm
154 mm
25–30 kg
Up to 20 dB reduction
–30°C to +70°C
>30 years
Recommended Applications
- Ceiling isolation grids in recording studios, media rooms, and conference centers
- Wall decoupling in multi-residential units and hotel partitions
- Vibration-sensitive zones such as hospitals, laboratories, and server rooms
- Technical spaces with HVAC or mechanical systems requiring vibration separation
Installation Overview
1.
Mounts are attached to structural ceilings or walls using appropriate anchors.
2.
Profiles (metal CD or UD) are suspended via the elastomer core, avoiding rigid contact.
3.
Compatible with most standard drywall framing components.
4.
Ensure elastomer pad faces frame contact points to maintain full decoupling.
Storage and Handling
- Store in a dry indoor environment, away from direct sunlight or moisture.
- Avoid exposure to harsh chemicals or deforming pressure during storage or transport.
Related Products
If your project requires deeper decoupling or a different elastomer configuration, consider these alternatives:
- PROTEFIX P23 – For standard decoupling applications
- PROTEFIX P27 – Highest-grade mount for critical low-frequency control
Need Help with System Configuration?
Our technical specialists can help you determine how many mounts are needed based on ceiling/wall load and layout. We also offer CAD support and integration guidance for architectural acoustics.
