Complementary Materials for Acoustic Systems
Essential Components for Professional Soundproofing
SONOTIZ offers a full range of complementary materials designed to support and enhance sound insulation systems. These accessories are critical for proper structural decoupling, airtight sealing, vibration isolation, and thermal performance — ensuring long-term durability and acoustic integrity.
Whether you're working on drywall assemblies, floor systems, suspended ceilings, or HVAC installations, the products below provide optimized support for a flawless result.
Vibro-Tape SONOFOL PE — Self-Adhesive Isolation Tape
Purpose:
Self-adhesive polyethylene tape for decoupling metal profiles in drywall systems. Designed to reduce vibration and impact noise by eliminating direct contact between structural elements.
Description:
SONOFOL PE Vibro-Tapes are resilient isolation layers used between plasterboards and metal profiles (C-D and U-D). They prevent rigid structural contact and significantly reduce noise transfer. Narrow formats are placed directly on profiles, while wider versions are used around the perimeter (walls, floors, ceilings) to avoid acoustic bridges.
Applications:
- 30 / 45 mm: applied on C-D and U-D profiles before plasterboarding
- 70 / 90 mm: used under perimeter profiles on floors, ceilings, and walls
- Ideal for walls, ceilings, and framing in residential and commercial buildings
Delivery Forms:
- Thicknesses: 2 / 3 / 5 mm
- Widths: 30 / 45 / 70 / 90 mm
- Roll length: 20 m
- Shelf life: 12 months (store flat, cool, and dry)
PROTEFIX P23 — Vibration-Isolating Suspension for Walls and Ceilings
Purpose:
Designed to decouple drywall frames from structural elements, PROTEFIX P23 improves sound insulation in wall and ceiling assemblies by reducing vibration transfer.
Description:
PROTEFIX P23 is an anti-vibration suspension mount featuring a polyurethane elastomer core embedded in a durable steel body. It isolates frame structures from the building’s load-bearing surfaces, lowering transmitted noise by up to 20 dB. Engineered for long-term performance in both residential and commercial drywall systems.
Applications:
- Used in suspended ceiling and wall framing systems
- Effective in mid- and high-frequency ranges (125–1000 Hz)
- Suitable for offices, studios, apartments, and technical areas
- Ensures long-term vibration decoupling and structural separation
Delivery Forms:
- Steel body with polyurethane elastomer core
- Dimensions: 98 × 40 mm; Height: 154 mm
- Load capacity: 25–30 kg
- Elastomer thickness: 12.5 mm or 25 mm
- Temperature resistance: –30°C to +70°C
- Service life: >30 years

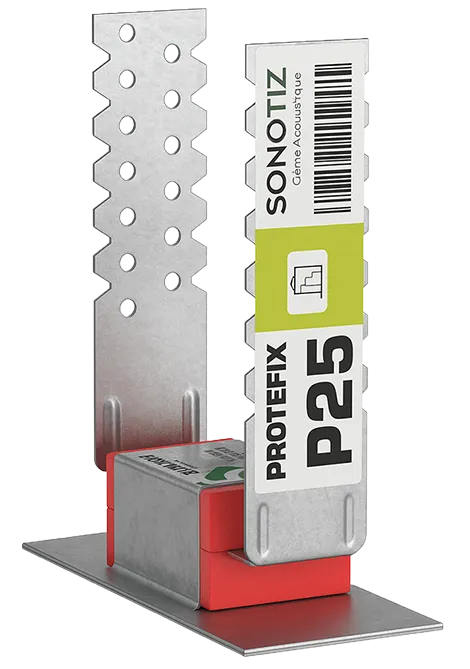

PROTEFIX P25 — Heavy-Duty Anti-Vibration Suspension Mount
Purpose:
Advanced vibration-isolating mount for drywall structures. Designed to decouple wall and ceiling frames from structural surfaces, improving low-frequency sound insulation.
Description:
PROTEFIX P25 is an enhanced suspension hanger with a 25 mm thick polyurethane elastomer core for demanding acoustic systems. It provides exceptional vibration damping and is ideal for applications requiring deeper isolation in low-frequency ranges.
Applications:
- Structural decoupling in wall and ceiling framing
- Enhanced soundproofing for low-frequency noise (bass, mechanical hum)
- Ideal for commercial, technical, and studio installations
Delivery Forms:
- Steel body with 25 mm polyurethane elastomer insert
- Dimensions: 98 × 40 mm
- Height: 154 mm
- Load capacity: 25–30 kg
- Temperature resistance: –30°C to +70°C
- Lifespan: >30 years

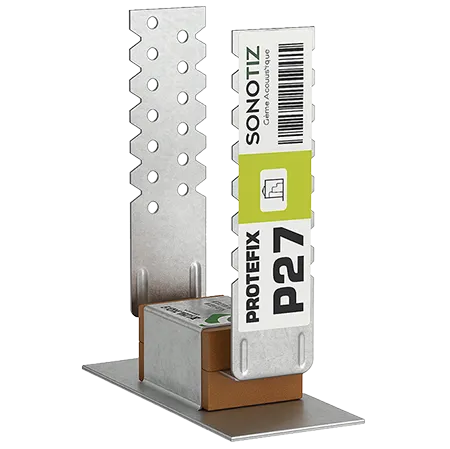

PROTEFIX P27 — Premium Anti-Vibration Mount for Walls and Ceilings
Purpose:
High-performance suspension element for drywall systems. Designed to isolate wall and ceiling frames from structural contact, improving sound insulation through maximum vibration decoupling.
Description:
PROTEFIX P27 is the most advanced anti-vibration mount in the PROTEFIX series. Optimized for critical acoustic environments, it provides the highest level of decoupling among all models. Suitable for applications where sensitive or high-spec soundproofing is essential.
Applications:
- Recommended for recording studios, media rooms, high-end residential, and medical or technical spaces
- Ideal for complex drywall systems with demanding acoustic requirements
- Works in both wall and ceiling installations
Delivery Forms:
- Steel body with maximum elastomer thickness
- Dimensions: 98 × 40 mm
- Height: 154 mm
- Load capacity: up to 30 kg
- Temperature resistance: –30°C to +70°C
- Lifespan: >30 years

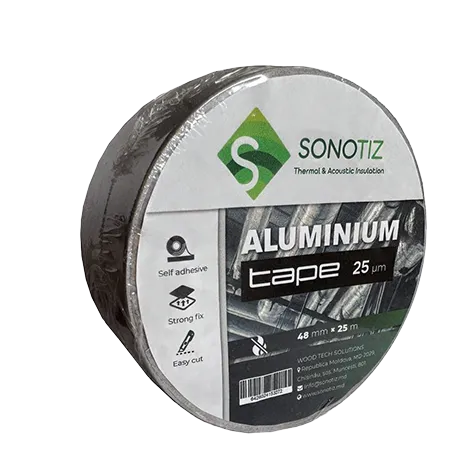

SONOTIZ ALU-BAND — Aluminium Sealing Tape for Insulation Joints
Purpose:
High-durability aluminium foil tape for sealing joints in SONO-AL and SONOFOL PE-based insulation systems. Enhances airtightness and overall acoustic and thermal insulation performance.
Description:
SONOTIZ ALU-BAND is essential for overlapping and sealing aluminium-laminated insulation materials. It prevents air gaps and maintains system integrity in demanding soundproofing and thermal barrier installations. The pressure-sensitive adhesive ensures quick and secure bonding.
Applications:
- Sealing joints and overlaps in SONO-AL and SONOFOL PE materials
- Airtight sealing in thermal and acoustic insulation systems
- HVAC ducts, ventilation systems, and pipe insulation
- Suitable for residential, commercial, and industrial environments
Delivery Forms:
- Rolls: 48 mm width × 10 m / 25 m / 45 m
- Material: Aluminium foil with pressure-sensitive adhesive
- Color: Metallic silver
- Adhesion strength: ≥15 N / 25 mm
- Storage: +10°C to +30°C, dry place, avoid sunlight and humidity
- Shelf life: 12 months from production date

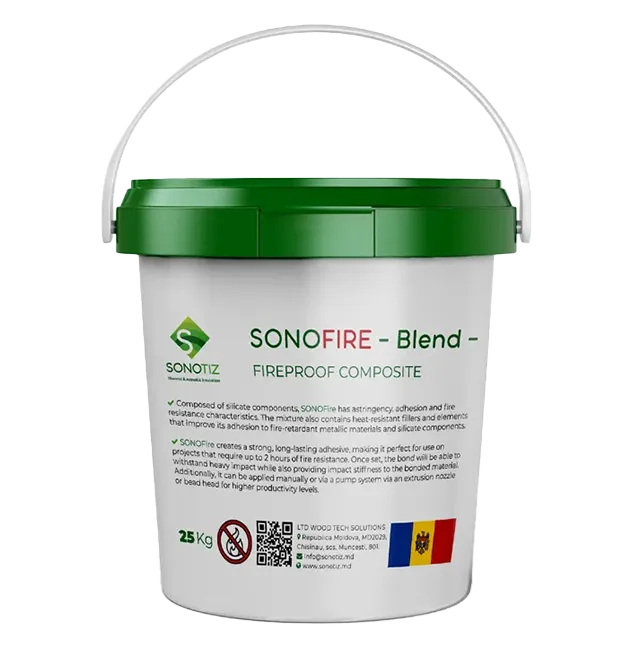

SONOFIRE — Fireproof Composite Adhesive for Critical Installations
Purpose:
High-performance fire-resistant adhesive designed for thermal and acoustic insulation systems in smoke extraction ducts, fire-rated HVAC, and critical installations. Provides both mechanical strength and flame retardancy.
Description:
SONOFIRE is a ready-to-use composite adhesive formulated to bond SONO-AL insulation in areas requiring certified fire resistance. It ensures airtight sealing, prevents thermal bridging, and maintains system stability in fire-rated zones. Ideal for projects where durability, precision, and certified fireproofing are essential.
Applications:
- Bonding SONO-AL in fire-rated ventilation and smoke ducts
- Sealing in HVAC systems and fire barrier joints
- Use in walls, ceilings, and technical shafts
- Manual or pump application (compatible with extrusion nozzles)
- Any surface requiring 2-hour certified structural fireproofing
Delivery Forms:
- Supplied in 25 kg buckets, ready to use
- Shelf life: 12 months
- Storage: keep in a dry, dark place at 20°C ±3°C, 50% ±20% humidity

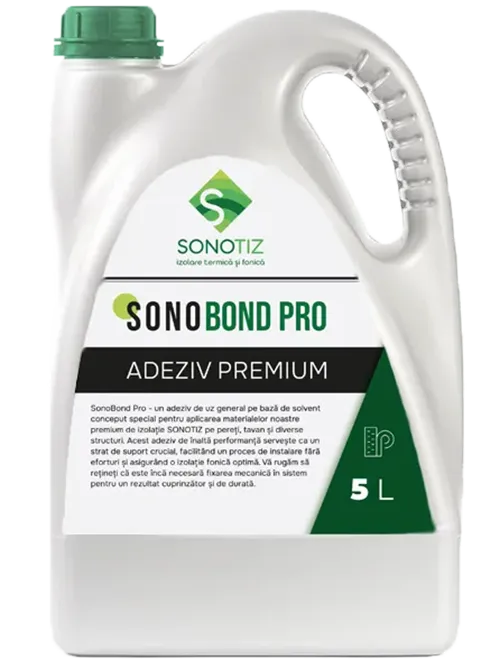

SONOBOND — General-Purpose Adhesive for SONOTIZ Insulation Systems
Purpose:
High-strength adhesive for bonding SONOTIZ sound and thermal insulation materials to walls, ceilings, and other structural surfaces. Improves installation efficiency and ensures long-term acoustic performance.
Description:
SONOBOND is a solvent-based adhesive developed for reliable application of SONOTIZ BLOCK, ATA, and other mats. It creates strong bonds on surfaces like concrete, brick, and drywall. Mechanical fixings are recommended in addition to adhesive when structural stability is critical.
Applications:
- For bonding insulation to concrete, brick, or gypsum
- Use on walls, ceilings, and framing structures
- Suitable for residential and commercial interiors
- Combine with mechanical anchors for maximum reliability
Delivery Forms:
- Supplied in sealed containers
- Store between +10°C and +30°C
- Keep in a cool, dry, ventilated space
- Freeze-sensitive
- Shelf life: 12 months in original packaging
Heat-Resistant Double-Sided Tape — High-Temperature Bonding
Purpose:
Industrial-grade adhesive tape for heavy-duty bonding in environments exposed to heat. Designed to withstand elevated temperatures and maintain adhesion in critical applications.
Description:
This double-sided tape resists temperatures from –10°C to +120°C and is engineered for bonding tasks that involve metal, plastic, insulation, and electronic components. It offers consistent grip even under mechanical stress or thermal cycling.
Applications:
- Mounting metal and plastic parts exposed to heat
- Fixing acoustic and thermal insulation panels
- Bonding electronics and appliance components
- Use in automotive manufacturing
- Installing facade panels and external cladding
Delivery Forms:
- 10 mm × 10 m
- 18 mm × 20 m
- 48 mm × 10 m
- 10 mm × 20 m
- Shelf life: 12 months
- Storage: dry, dark place at 20°C ±3°C, 50% ±20% humidity
ECO Double-Sided Tape — Light-Duty & Eco-Friendly Bonding
Purpose:
Eco-conscious double-sided adhesive tape for precise and lightweight applications. Ideal where clean bonding and environmental sensitivity are important.
Description:
Thin, pressure-sensitive tape engineered for light-duty uses, with temperature resistance from –15°C to +80°C. It offers secure adhesion without adding bulk, and is suitable for a variety of decorative, technical, and packaging tasks.
Applications:
- Mounting lightweight decorative items
- Securing cable ducts and baseboards
- Fixing displays, labels, and advertising panels
- Craftwork, interior design, and DIY
- Assembling cardboard packaging and boxes
Delivery Forms:
- 10 mm × 10 m
- 18 mm × 20 m
- 48 mm × 10 m
- 10 mm × 20 m
- Shelf life: 12 months
- Storage: dry, dark place at 20°C ±3°C, 50% ±20% humidity
Foam Double-Sided Tape — For Uneven or Textured Surfaces
Purpose:
Specialized double-sided adhesive tape for bonding rough or irregular surfaces. Provides shock absorption, flexibility, and strong hold for construction, decoration, and technical applications.
Description:
Made from a flexible foam base, this tape compensates for surface gaps and texture variations, ensuring secure adhesion on materials that aren’t perfectly flat. Ideal for structural and interior mounting tasks.
Applications:
- Bonding on textured walls, bricks, or decorative panels
- Mounting mirrors, hooks, and small household fixtures
- Installing wall moldings, acoustic panels, and insulation
- Fixing construction components or building trims
- Automotive uses: badges, emblems, interior strips
Delivery Forms:
- 10 mm × 10 m
- 18 mm × 20 m
- 48 mm × 10 m
- 10 mm × 20 m
- Shelf life: 12 months
- Storage: dry, dark place at 20°C ±3°C, 50% ±20% humidity
Still Have Questions About Accessories?
If you need help selecting installation tools or want to understand which accessories are best for your SONOTIZ insulation system — our team is ready to assist. We’ll recommend the right tapes, mounts, or adhesives based on your project’s technical needs.
