SONOTIZ AT — Multilayer Acoustic and Thermal Insulation Mat
SONOTIZ AT
Thermal & Soundproofing Insulation for under-screed vibro damping, Walls and Ceilings.
Purpose
Impact sound absorption and thermal insulation for walls, ceilings, and floors in residential, commercial, and industrial buildings.
Description
Multilayer mat made of pressed fiberglass (SONO Eco) covered with spunbond layers. Offers high density, excellent insulation, and mechanical protection without the use of binders. Maintains structural integrity at temperatures up to 650°C.
Application
Under screed as a vibration-damping layer, in soundproof ceilings and walls, recording studios, home theaters, public buildings, mechanical engineering, and new/renovation projects.

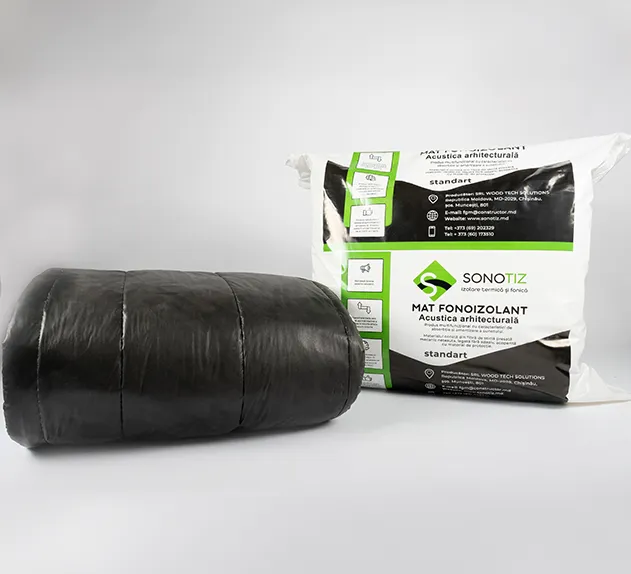

Delivery Forms
Mat size: 1.5 m x 10 m
Surface: 15 m²
Thickness: 12 mm
Density: 1.6 kg/m²
Weight: 24 kg/mat
Overview
SONOTIZ AT is a high-performance multilayer insulation mat engineered for professional soundproofing and thermal protection. It features a dense SONO-ECO fiberglass core wrapped in non-woven spunbond layers for added resilience, decoupling, and durability. The mat delivers excellent performance in reducing impact sound, airborne noise, and heat transfer — making it ideal for floors, walls, ceilings, and complex architectural spaces. Manufactured without binders, the fiberglass mat maintains integrity at temperatures up to 650°C and achieves a non-combustible fire classification A2:s1,d0 under EN 13501-1 standards.
Key Benefits
- Impact Noise Reduction: Up to –24 dB, measured per DIN EN ISO 10140-1 to 5:2021-09
- Fire Rating: A2:s1,d0 (non-combustible, low smoke)
- Fire Rating: A2:s1,d0 (non-combustible, low smoke)
- Decoupling Layer: Prevents cracking in tiles and screeds due to structural movement
- Robust Composition: Resistant to pressure, vibration, and long-term wear

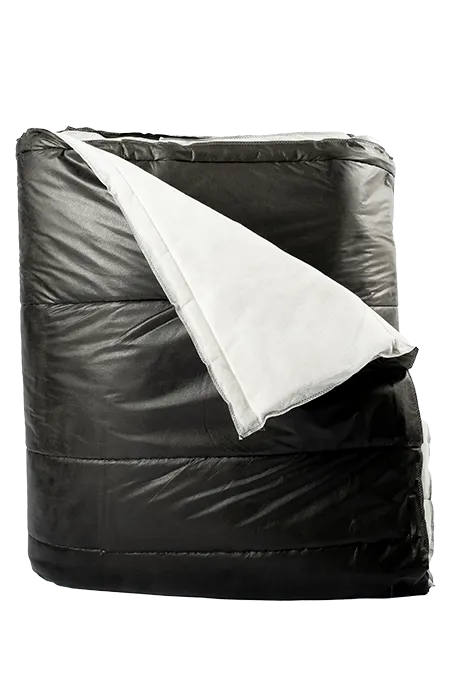

Structure and Materials
SONOTIZ AT is constructed from:
- Core: High-density E-glass fiberglass (SONO Eco)
- Top/Bottom Layers: Aluminized or spunbond non-woven protection
- Assembly: Mechanically pressed without binders or adhesives
This combination ensures excellent sound absorption, vibration damping, and structural resilience.
Applications
SONOTIZ AT is suitable for:
- Recording studios, home theaters, public cinemas
- Wall, floor, and ceiling insulation in residential and commercial buildings
- Apartments, hotels, and acoustic renovation projects
- Mechanical rooms, HVAC installations, and industrial settings
- Under screed systems as a resilient anti-vibration layer
Installation Guide
Under screed use:
Under screed use:
1.
Clean the surface from debris and dust.
2.
Lay SONOTIZ AT mats lengthwise across the area.
3.
Add a 5 cm wall extension margin based on screed height.
4.
Overlap adjacent mats by 5 cm to ensure continuous coverage.
5.
Pour screed at minimum 50 mm thickness or 80 kg/m².
6.
After leveling, trim excess edges and seal perimeter.

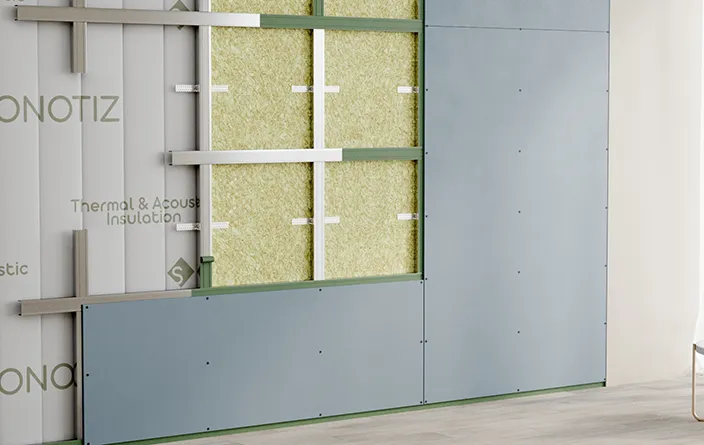

Wall & ceiling use:
- Insert as a decoupling or damping layer within drywall or acoustic assemblies.
- Suitable behind gypsum, under acoustic panels, or in cavity partitions.
Technical Specifications
Property
Thickness
Density
Weight
Size
Surface Area
Fire Rating
Impact Sound Reduction
Operating Temperature
Physiology / Toxicology
Material
Value
12 mm ±15%
1.6 kg/m² ±10%
22 kg per mat
1.5 m × 10 m
15 m²
A2:s1,d0 (EN 13501-1)
Up to –24 dB (DIN EN ISO 10140)
Up to 650°C
Not dangerous / Non-toxic
Pure E-glass Fiberglass + Spunbond
Documentation
You can download the full technical datasheet here:
Need Help Choosing the Right Tape?
If you're unsure whether SONOTIZ AT is right for your application, our technical team is ready to assist with calculations, compatibility checks, and material selection tailored to your project.
