SONOTIZ BLOCK
SONOTIZ BLOCK
Soundproofing panels for airborne sound insulation.
Purpose
High-performance sound insulation panel designed to reduce impact and airborne noise, and to absorb echo and reverberation.
Description
A slim but durable cellulose-based panel with a corrugated structure, filled with quartz sand. Combines mass, elasticity, and stratification to block all major types of noise with minimal loss of usable space.
SONOTIZ BLOCK 12
Thickness: 12 mm
Weight: 17.5 kg/m²
Width × Length: 0.8 m × 1.2 m
Surface area: 0.96 m²
SONOTIZ BLOCK 18
* Recommended for uneven or irregular surfaces due to the integrated EPE foil layer ensuring optimal contact and stability.
Thickness: 18 mm
Weight: 18.5 kg/m²
Width × Length: 0.8 m × 1.2 m
Surface area: 0.96 m²

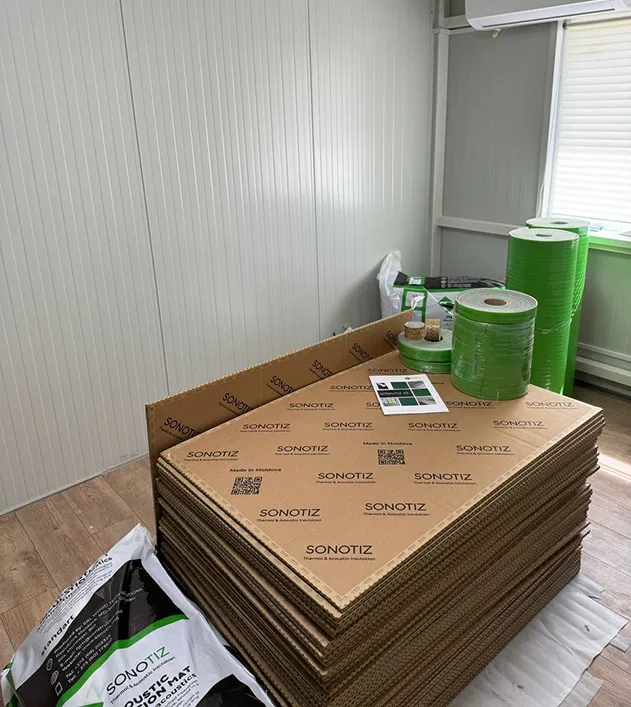

Storage
SONOTIZ BLOCK panels must be stored in a dry, well-ventilated environment, protected from high humidity, condensation, or direct exposure to moisture. Therefore, they cannot be stored and installed in a room with high humidity.
Before installation, panels should be stored for at least 24 hours in the same environment where they will be installed. This acclimatization period allows the panels to adjust to ambient temperature and humidity, ensuring optimal sound insulation and dimensional stability.
To prevent warping or bending, panels must be stored and transported horizontally on a flat surface. By following these storage and handling guidelines, users can maintain the full performance, durability, and longevity of SONOTIZ BLOCK panels.
General Overview
SONOTIZ BLOCK is a high-density acoustic insulation panel engineered to deliver powerful soundproofing in a compact format.
Manufactured from wood fiber with a corrugated structure and filled with calcined quartz filler, it combines the essential acoustic principles of mass, elasticity, and multi-layer absorption. This combination of materials and design ensures effective damping of sound waves of various frequencies.
This innovative design makes SONOTIZ BLOCK ideal for walls, ceilings, and floors, providing effective reduction of airborne and impact noise in residential, commercial, and industrial spaces — without increasing wall thickness.
How It Works
SONOBLOCK’s performance is based on a triple-action structure:
1.
Mass: the quartz sand filler acts as a dense barrier, absorbing and dissipating sound wave energy.
2.
Elasticity: the flexible wood-fiber framework absorbs vibrations and prevents sound propagation.
3.
Multi-layer dissipation: alternating layers of different densities cause partial energy loss when sound waves pass between materials.
Key Benefits
- Exceptional noise reduction with minimal thickness (12–18 mm)
- Compact, lightweight, yet highly durable
- Eco-friendly composition — cellulose + quartz
- Easy and clean installation directly on walls, ceilings, and floors
- Prevents sound bridges and vibration transmission
- Space-saving alternative to floating floors or heavy cement screeds
Technical Specifications
Parameter
Thickness
Weight
Width × Length
Surface area
Airborne noise reduction
Installation method
Panel type
SONOTIZ BLOCK 12
12 mm
17.5 kg/m²
0.8 m × 1.2 m
0.96 m²
SONOTIZ BLOCK 18
18 mm
18.5 kg/m²
0.8 m × 1.2 m
0.96 m²
Corrugated cellulose frame + calcined quartz filler + EPE foil
SONOTIZ BLOCK 12
Parameter
Thickness
Weight
Width × Length
Surface area
Airborne noise reduction
Static load resistance
Installation method
Panel type
Value
12 mm
17.5 kg/m²
0.8 m × 1.2 m
0.96 m²
Corrugated cellulose frame + calcined quartz filler
Acoustic adhesive + polymer dowel-nails
High-density multilayer soundproof panel
SONOTIZ BLOCK 18
Parameter
Thickness
Weight
Width × Length
Surface area
Airborne noise reduction
Static load resistance
Composition
Installation method
Panel type
Value
18 mm
18.5 kg/m²
0.8 m × 1.2 m
0.96 m²
Corrugated cellulose frame + calcined quartz filler + EPE foil
Acoustic adhesive + polymer dowel-nails
High-density multilayer soundproof panel
Recommended Applications
SONOTIZ BLOCK is perfect for spaces where noise control and privacy are critical. It is particularly recommended for:
- Internal and partition walls in residential buildings
- Office spaces, meeting rooms, call centers
- Medical and therapy rooms
- Hotels, premium apartments, quiet sleeping areas
- Projects with tight limits on construction thickness

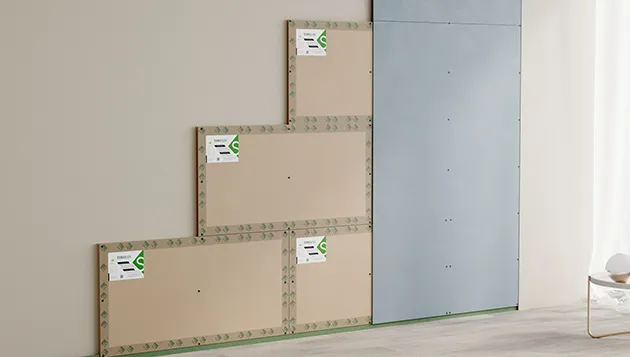

Instalation as part of the Soundproofing System

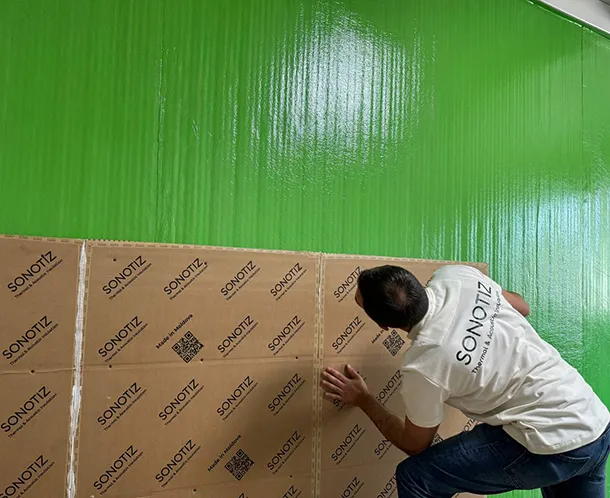

Installation Guidelines
Installation of SONOTIZ BLOCK panels is simple and does not require special equipment:
1.
Surface preparation: clean, smooth, and fill all gaps and cracks
2.
Adhesion: apply foam adhesive uniformly without air pockets
3.
Sealing: use fire-rated silicone + adhesive tape at all joints
4.
Mechanical fixation: dowels for extra security
5.
Cutting: easy to trim with a utility knife, saw, or grinder optimal results, acclimate the panels in the installation area for at least 24 hours prior to mounting.
Important!
SONOTIZ BLOCK panels easily absorb moisture. Therefore, they cannot be stored and installed in a room with high humidity.
Need Help with Selection or Calculation?
Our technical team is here to assist you in choosing the right solution, calculating material requirements, and planning optimal installation techniques.
