SONOTIZ THERMAL – Reflective Multilayer Insulation System
SONOTIZ THERMAL
Purpose
Advanced multilayer reflective insulation for thermal control and vapor barrier protection in buildings.
Description
12-layer flexible reflective thermal insulation combining SONO-ECO fiberglass with multiple polyester and metallized film layers. Designed to block conduction, convection, and radiation. Offers superior insulation with only 30 mm thickness.
Application
Roofs (above/below rafters), walls, floors, cavity walls, plasterboard layers, attics, wooden frames, and ceilings. Acts as a vapor barrier and provides high insulation with reduced thickness.
Delivery Forms
Roll width: 1500 mm
Thickness: 30 mm (20 mm at edges)
Thermal resistance: up to 3.0 m²K/W
Operating temp: -40 °C to +90 °C
Flammability class: G1
Reduces heat loss up to 83%
Overview of SONOTIZ THERMAL
SONOTIZ THERMAL is an advanced 12-layer reflective insulation system engineered to deliver superior thermal resistance and vapor barrier performance in modern buildings. Designed to optimize energy savings and indoor comfort across seasons, it combines several high-performance materials into one lightweight, flexible, and easy-to-install product. This system integrates SONO-ECO fiberglass at its core, complemented by multiple metallized polyester films and technical spunbond layers. Each layer serves a specific function—whether resisting conduction, convection, or radiant heat transfer—offering a holistic thermal control solution without excessive material thickness.
Why Choose SONOTIZ THERMAL?
- Multilayer Performance: Offers thermal protection, vapor barrier control, and sound insulation in one product.
- Space-Saving Efficiency: Achieves high insulation performance at only 30 mm total thickness.
- Flexible & Lightweight: Easy to transport, cut, and install around existing structural elements.
- Durable & Long-Lasting: Resistant to aging, deformation, and thermal degradation.
- Improves Energy Ratings: Cuts energy loss by up to 83%, improving building sustainability and reducing utility costs.

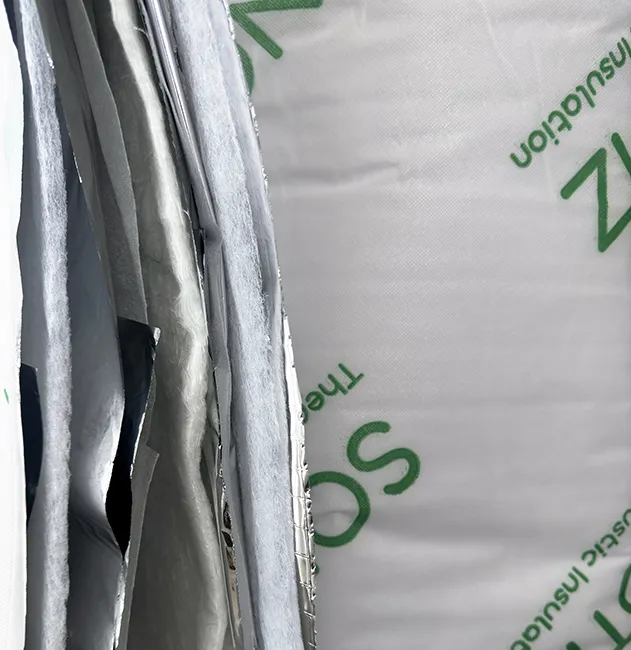

Construction Details
Layer Composition (12 layers total):
1.
Metallized PET film (outer surface) – reflective barrier
2.
Polyester spunbond – protects reflective surface
3.
Technical film – anti-aging protection
4.
Polyethylene film – vapor control
5.
Fiberglass mat (SONO-ECO core) – main thermal and acoustic layer
6.
Polyethylene foam – shock resistance and structure
7.
Additional metallized PET layers – double-sided reflectivity
8.
Interior polyester spunbond finish
All layers are thermally bonded without harmful adhesives. No fibers are released during handling or installation.

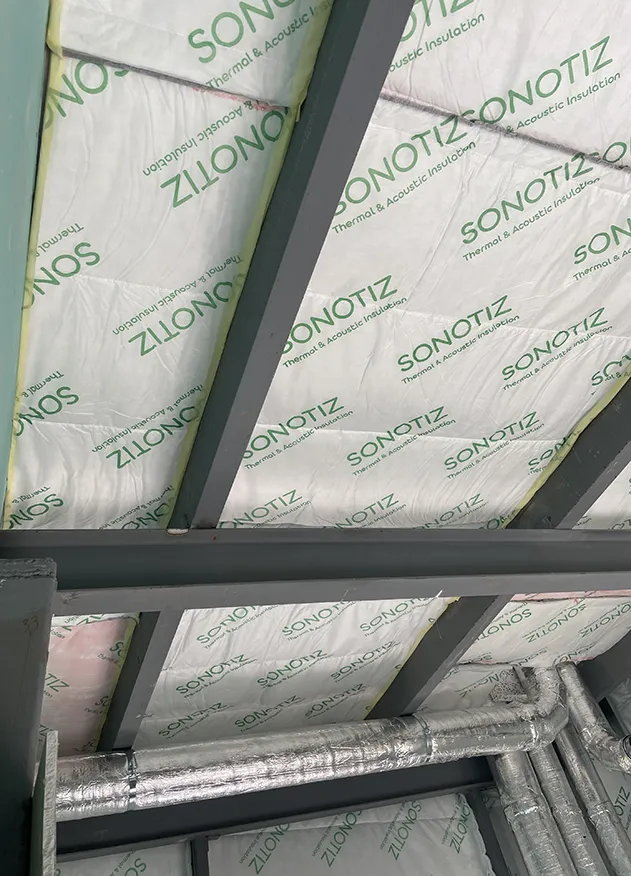

Applications
SONOTIZ THERMAL is highly versatile and suitable for:
- Residential: Attics, ceilings, cavity walls, floors, plasterboard lining
- Commercial: Rooftop interiors, HVAC rooms, steel-frame buildings
- Industrial: Technical shafts, metal warehouses, machine enclosures
- Timber Construction: Acts as a vapor barrier and reduces heat bridging in wood-framed roofs or walls
Technical Specifications
Property
Total Thickness
Roll Width
Roll Coverage
Core Material
Additional Layers
Thermal Resistance (R-value)
Operating Temperature Range
Flammability Class
Heat Loss Reduction
Installation
Shelf Life
Value
30 mm (tapered to 20 mm at edges)
1500 mm
Approx. 15 m² / roll
SONO-ECO fiberglass
Metallized PET, Spunbond, PE foam
Up to 3.0 m²·K/W
–40°C to +90°C
G1
Up to 83%
Manual, staples, or adhesives
12 months (dry storage)
Advantages in Practice
- Helps stabilize indoor temperatures across seasons
- Enhances comfort and air quality through vapor regulation
- Compatible with most framing systems (wood, metal, SIPs)
- Supports sustainability certifications through energy optimization
- Lightweight roll design simplifies logistics and jobsite handling
