SonoFrame Essential
Compact wall soundproofing system designed to reduce airborne and vibrations
What it solves:
Basic sound insulation for partitions and internal walls. Minimises airborne sound transmission and absorbs vibrations — ideal for economy-level residential or light commercial needs.

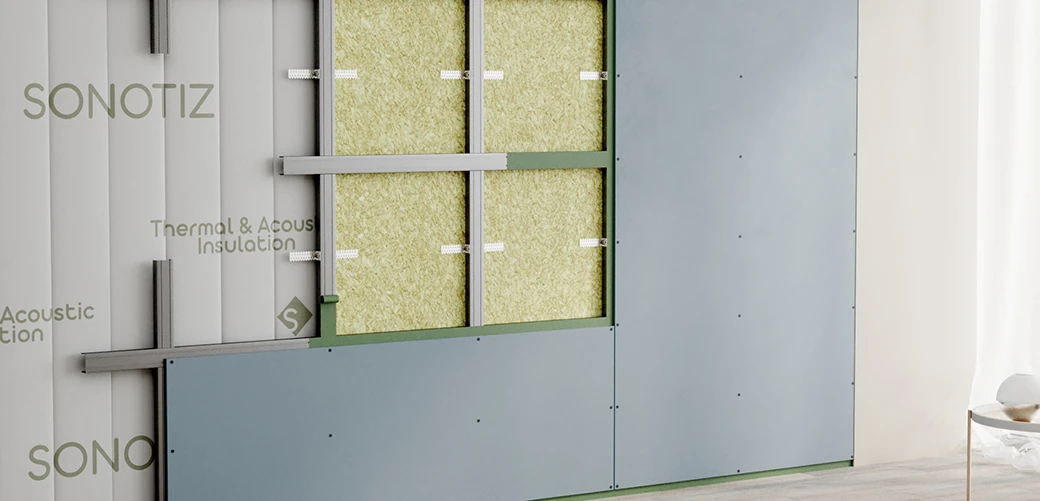

System Composition:
Vibro-Tape
on the perimeter, then on the C-D just before the Rigips
SONOTIZ AT
mat 12mm , Installed on our
SONOBOND GLUE
PROTEFIX
Acoustic hangers P27
Acoustic Gypsum board facing x 2
Inside, before the Gypsum we put mineral wool or other filling material to fill up the space
Soundproofing Performance:
Independent laboratory tests conducted in accordance with European acoustic standards confirm the effectiveness of SonoFrame Essential. Depending on the wall assembly, the system achieved an airborne sound insulation index (Rw) of 55 dB.
This means that typical household and street noise is reduced to a barely perceptible level, providing measurable and certified improvement of acoustic comfort.
THICKNESS : 66mm
Key materials in this system
SONOTIZ AT
Thermal & Soundproofing Insulation for under-screed vibro damping, Walls and Ceilings.
Need Help Choosing the Right Format?
If you're unsure which width or thickness suits your system best — contact our technical support team. We'll help match your profile dimensions and performance requirements to the optimal Vibro-Tape solution.
