SonoFrame Advanced
What it solves:
Reduces both airborne and structural noise. Ensures comfort in apartments or shared walls by adding Heavy Soundproofing panles SONOTIZ BLOCK. Best seller for residential renovations.

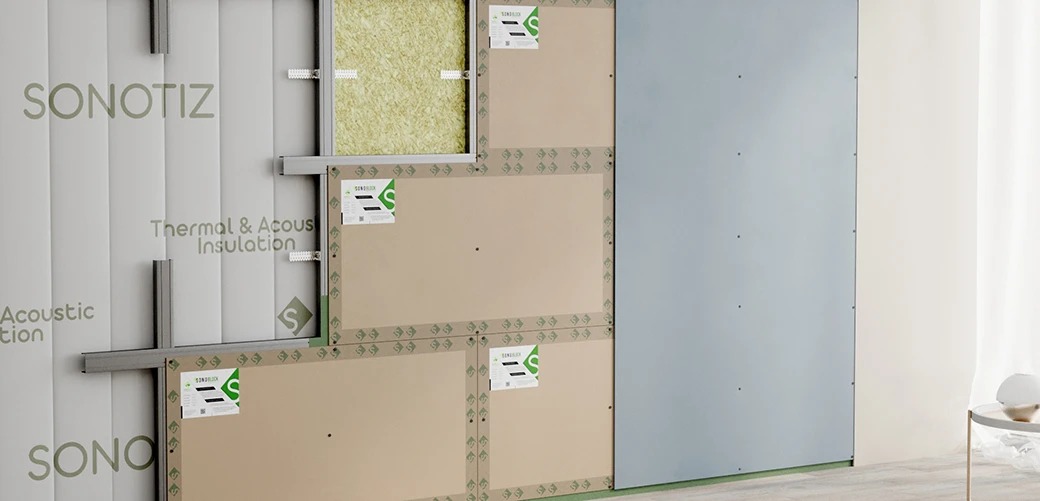

System Composition:
Vibro-Tape
on the perimeter, then on the C-D just before the Rigips
SONOTIZ AT
mat 12mm , Installed on our
SONOBOND GLUE
PROTEFIX
Acoustic hangers P25
SONOTIZ BLOCK - Soundproofing panels on to the C-D profiles
Acoustic Gypsum board normal
Inside before the Gypsum we put mineral wool or other filling material to fill up the empty space
Soundproofing Performance:
Independent laboratory tests conducted in accordance with European acoustic standards confirm the effectiveness of SonoFrame Essential. Depending on the wall assembly, the system achieved an airborne sound insulation index (Rw) of 58 dB.
This means that typical household and street noise is reduced to a barely perceptible level, providing measurable and certified improvement of acoustic comfort.
THICKNESS : 80 mm
Key materials in this system
SONOTIZ AT
Thermal & Soundproofing Insulation for under-screed vibro damping, Walls and Ceilings.
Need Help Choosing the Right Format?
If you're unsure which width or thickness suits your system best — contact our technical support team. We'll help match your profile dimensions and performance requirements to the optimal Vibro-Tape solution.
