Thermal Insulation Systems SONOTIZ
High-Performance Thermal Insulation for Modern Construction
At SONOTIZ, we provide advanced thermal insulation materials engineered to optimize energy efficiency, climate comfort, and structural performance. Our solutions combine fire resistance, moisture control, and mechanical durability — ideal for residential, commercial, and technical buildings.
From attic spaces and walls to under-roof and HVAC zones, our insulation products ensure reliable thermal protection year-round. Whether you're upgrading an existing structure or building from scratch, SONOTIZ thermal insulation systems offer easy installation and lasting performance.
SONO-ECO — Non-Combustible Fiberglass Thermal Mat
Purpose:
SONO-ECO provides robust thermal insulation, airborne noise control, and vibration damping for use in construction and industrial environments. It serves as the core insulation layer in SONOTIZ systems.
Description:
Composed entirely of E-glass fiberglass and mechanically compressed without binders, SONO-ECO is A1-rated (non-combustible), lightweight, flexible, and environmentally friendly. The mats withstand temperatures up to 650°C and deliver outstanding acoustic and thermal efficiency. Hypoallergenic and non-toxic.
Applications:
- Thermal and sound insulation of floors, walls, ceilings, roofs
- Elevator shafts, HVAC ducts, piping, and heating systems
- Residential, commercial, and industrial projects
- Studios, soundproof cabins, noise-sensitive rooms
Delivery Forms:
- Rolls: 1 m × 5 m
- Thickness: 7 mm or 10 mm (±15%)
- Density: 100–145 kg/m³
- Surface area: 5 m²/roll
- Shelf life: 12 months
- Store in a dry place; avoid moisture contact
SONO-AL — Thermal and Acoustic Mat with Aluminium Laminate
Purpose:
A high-performance insulation material designed to deliver thermal protection and vibration damping in HVAC, smoke extraction, and ventilation systems.
Description:
SONO-AL is a dense fiberglass insulation mat with reinforced aluminium foil on one side. It combines excellent thermal reflectivity, low emissivity, and acoustic absorption. This hybrid solution helps regulate seasonal temperature variations while preventing noise and vibration transmission.
Applications:
- Ventilation ducts, HVAC piping, and smoke extraction systems
- Mechanical and technical installations
- Soundproof booths and industrial partitions
Delivery Forms:
- Roll size: 1 m × 5 m (10 m²)
- Thickness: 10 mm (±15%)
- Weight: 8 kg/roll
- Density: 150 kg/m³

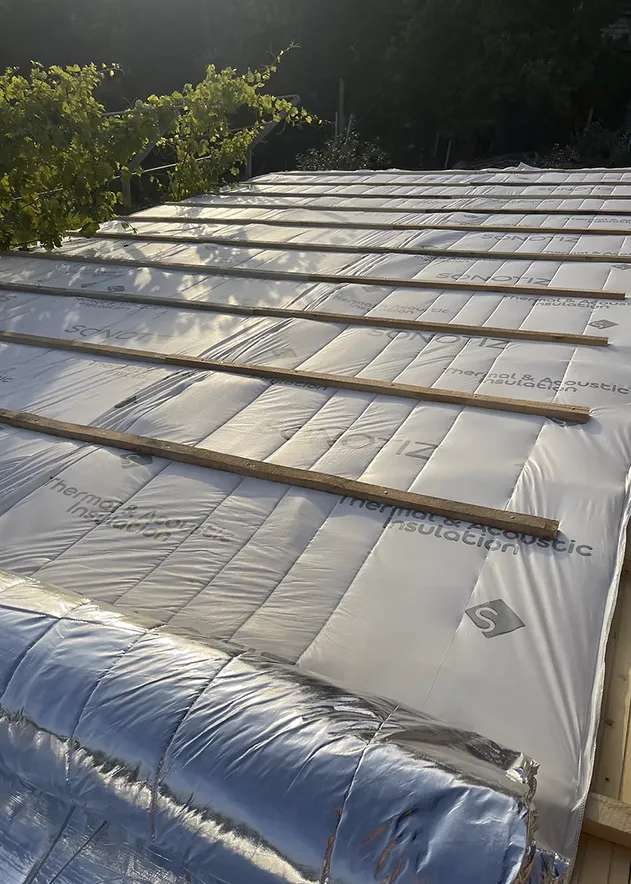

SONOTIZ ATA — Thermal & Soundproofing Roof Mat
Purpose:
Multilayer insulation solution for roofs and structural surfaces, aimed at reducing noise transmission and heat loss in both residential and commercial buildings.
Description:
SONOTIZ ATA consists of a fiberglass mat mechanically pressed and wrapped in aluminized spunbond. It combines a SONO-ECO core and a reflective surface layer to deliver excellent thermal resistance, energy savings, and airborne noise reduction. The mat is free from adhesives and withstands high temperatures up to 650°C.
Applications:
- Roof and attic insulation
- Interior/exterior insulation for ceilings and wall sections
- Prevents moisture, heat transfer, and external noise
- Can be cut to fit around beams and irregular structures
Delivery Forms:
- Mat size: 1.5 m × 10 m (15 m²)
- Thickness: 12 mm (±15%)
- Density: 1.6 kg/m²
- Weight: 22 kg/roll

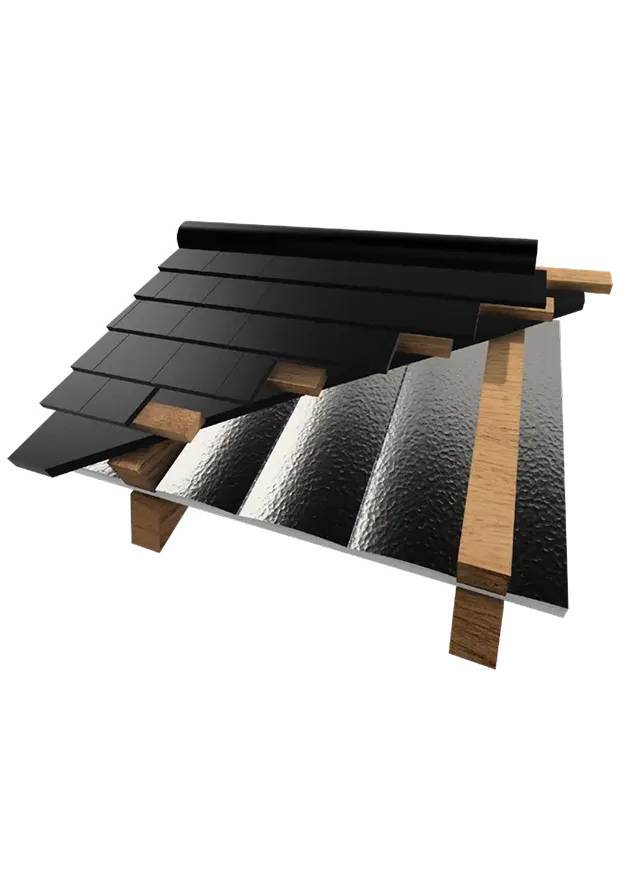

SONOTIZ THERMAL — Reflective Multilayer Roof Insulation
Purpose:
Advanced insulation with built-in vapor barrier and reflective layers for year-round energy efficiency and thermal control in construction.
Description:
This 12-layer system integrates SONO-ECO fiberglass with metallized film and polyester layers to combat conduction, convection, and radiation. It offers excellent insulation with only 30 mm thickness and helps prevent vapor buildup while maintaining optimal temperature control.
Applications:
- Roofs (above or below rafters), attics
- Floors, cavity walls, drywall systems, ceilings
- Vapor barrier for timber and steel-frame construction
Delivery Forms:
- Roll width: 1500 mm
- Thickness: 30 mm (20 mm at edges)
- Thermal resistance: up to 3.0 m²K/W
- Operating temperature: –40°C to +90°C
- Flammability class: G1
- Reduces heat loss by up to 83%

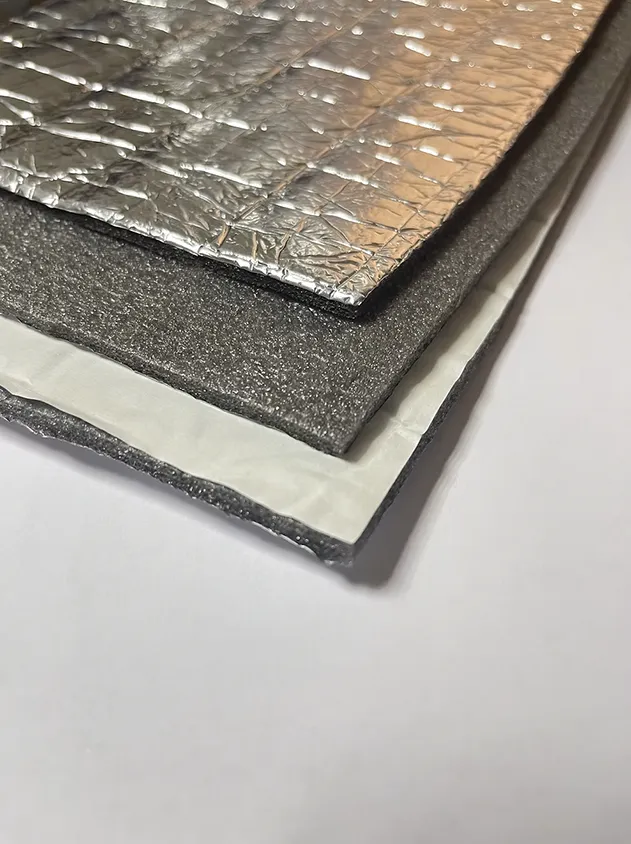

SONOFOL PE A — Thermal & Acoustic Foam with Aluminum Lamination
Purpose:
Designed to provide thermal insulation, moisture protection, and basic soundproofing for HVAC, walls, ceilings, and floors. Part of a three-version product family tailored for different needs.
Description:
SONOFOL PE A is a closed-cell polyethylene foam laminated with a 9-micron aluminum foil layer on one side. It acts as a thermal and vapor barrier and contributes to acoustic performance. The adhesive backing allows easy application on clean surfaces.
Applications:
- HVAC pipe and duct insulation
- Reflective insulation for ceilings and wall cavities
- Ventilation lining and indoor thermal control
- Suitable for residential and commercial use
Delivery Forms:
- Rolls: 1.2 m wide × 10–20 m long (varies)
- Storage: Dry, avoid sunlight
- Shelf life: 12 months
SONOFOL PE B — Vibration Damping & Thermal Foam (No Foil)
Purpose:
Provides cushioning, vibration damping, and a moisture barrier for construction, industrial, and packaging needs. It is the thicker version of the SONOFOL line.
Description:
SONOFOL PE B is a polyethylene foam without aluminum lamination. It offers good vibration control and insulation properties with adhesive backing for fast installation. Ideal for mechanical insulation or additional acoustic layers.
Applications:
- Vibration control in floors and drywall assemblies
- Insulation for mechanical equipment
- Inner layer in soundproofing constructions
- Protective packaging and technical cushioning
Delivery Forms:
- Width: 1.2 m
- Length: 10–20 m
- Store dry, away from sunlight
- Shelf life: 12 months
SONOFOL PE C — High-Performance Vapor and Thermal Barrier
Purpose:
Advanced insulation for demanding environments requiring excellent vapor sealing, thermal protection, and mechanical durability. One of three SONOFOL PE versions.
Description:
SONOFOL PE C is a closed-cell EPE foam laminated with reinforced aluminum foil. It delivers strong vapor barrier performance, thermal resistance, and moderate acoustic control. Offers increased mechanical strength compared to PE A and PE B.
Applications:
- Ventilation and smoke duct insulation
- Vapor barrier in technical and mechanical rooms
- HVAC thermal shielding
- Suitable for high-demand environments
Delivery Forms:
- Rolls: 1.2 m width, lengths from 10–20 m
- Storage: dry, protected from sunlight
- Shelf life: 12 months
SONOFOL PE C Radiators — Reflective Foam Insulation Behind Radiators
Purpose:
Thermal and vapor barrier designed specifically for installation behind radiators to reflect heat back into the room and reduce loss through exterior walls.
Description:
This version of SONOFOL PE is a thin polyethylene foam with reinforced aluminum foil and self-adhesive backing. It reflects thermal radiation back indoors, increases energy efficiency, and prevents heat dissipation into the wall. Compact and easy to apply behind radiators.
Applications:
- Behind radiators in apartments, homes, or office spaces
- Especially effective for exterior walls and poorly insulated areas
- Can be installed without dismounting the radiator
Delivery Forms:
- Rolls: 4 mm thick, size 70 cm × 95 cm
- Storage: cool, dry place, out of sunlight
- Temperature resistance: –20°C to +80°C
- Shelf life: 12 months
Need Help Choosing the Right Thermal Insulation?
If you're unsure which material is right for your needs or want expert advice on acoustic performance and installation — reach out to our team. We’ll find the perfect solution for your project.
We’ll help you select the most efficient thermal barrier or vapor-sealing material to match your project's needs and budget.
